CarbonPro SXS Hydraulic Jack

• Click here to download the manual

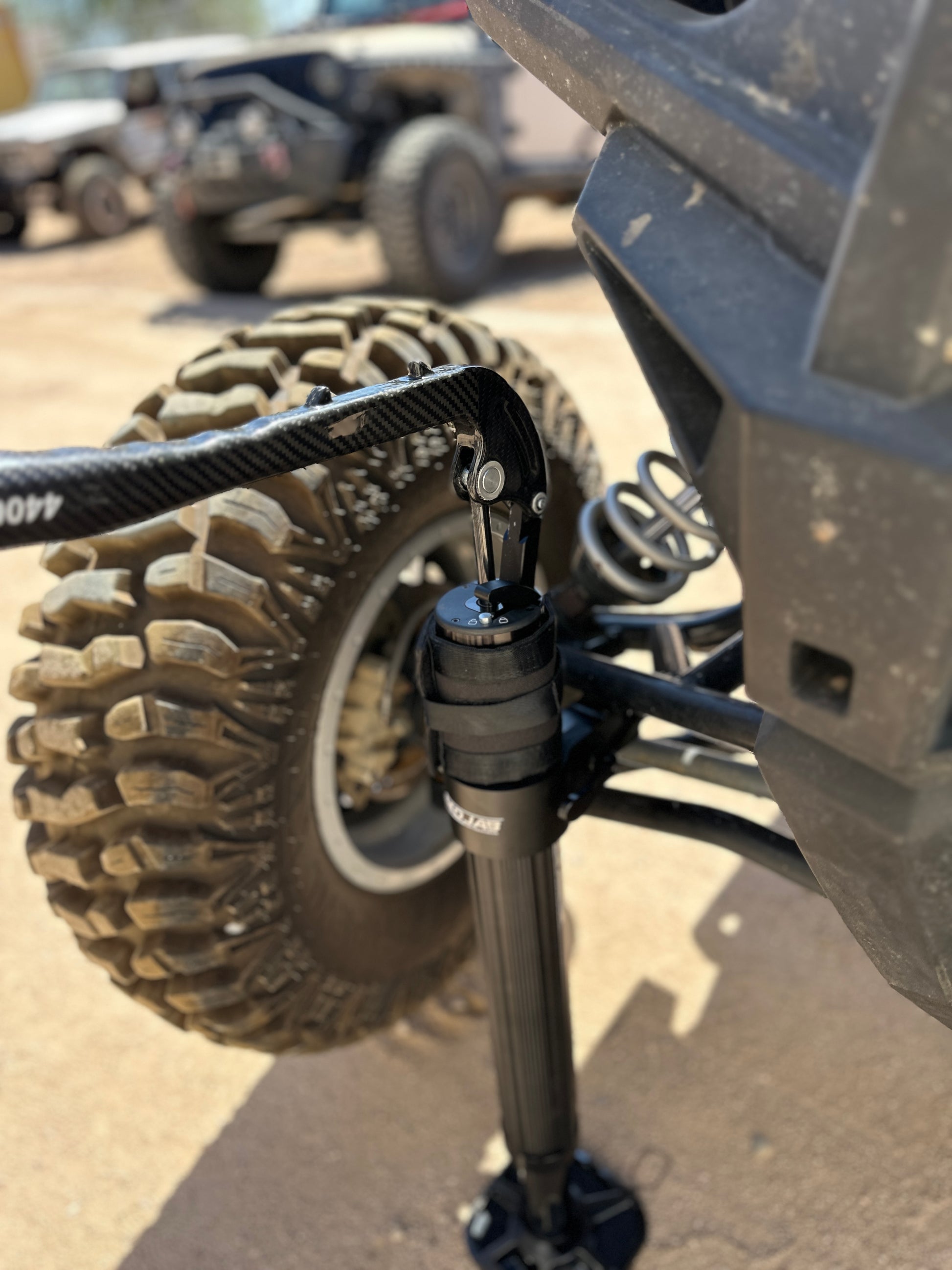

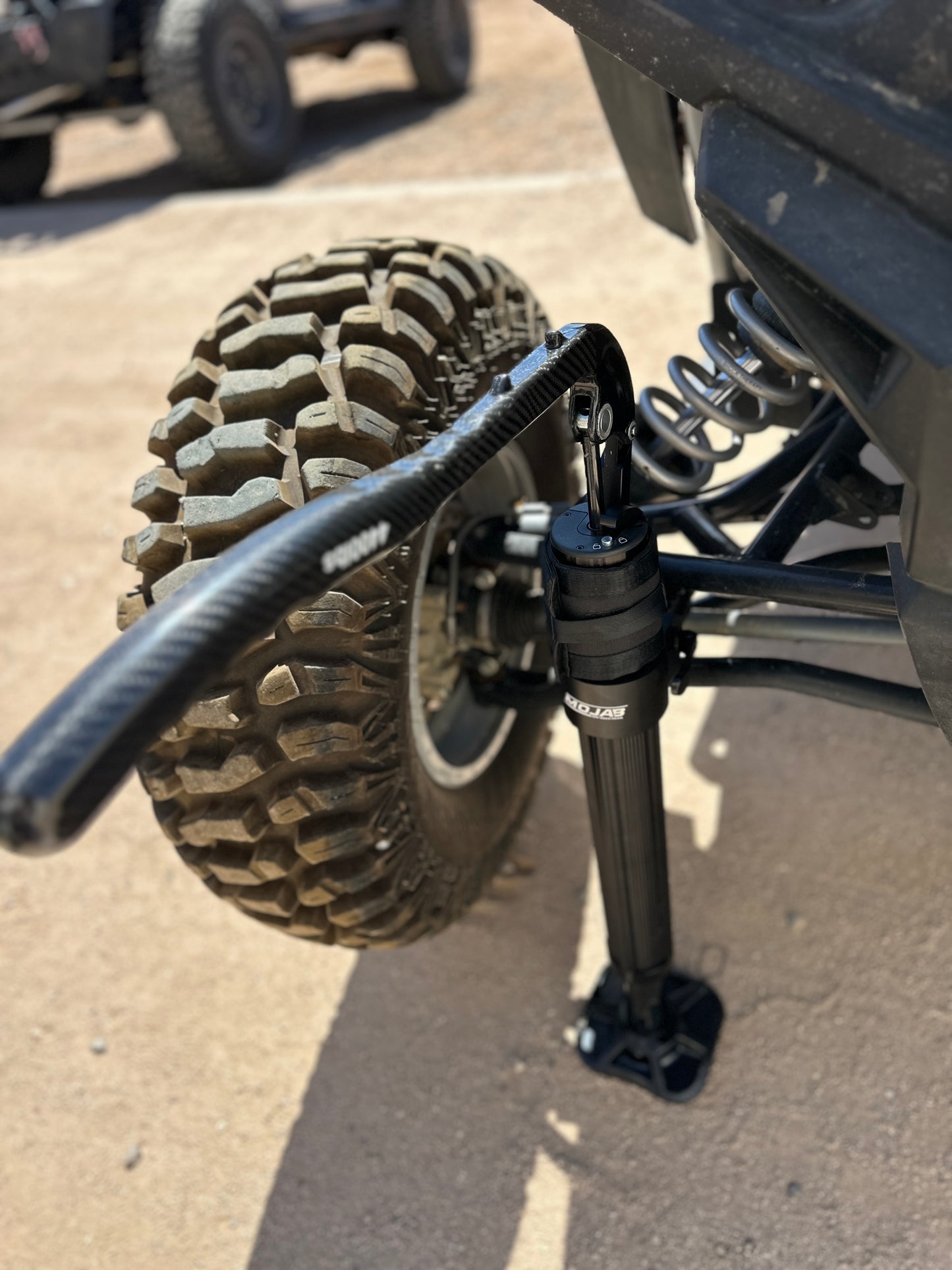

• Lightweight real carbon fiber handle construction
• Lockable air bleeder valve
• Fast and slow lowering functions
• Max. Lifting Height: 32.25''

• Travel: 13.37''

• Lifting Range: 6'' - 32.25''

• Compressed Height: 27.1''

• Extended Height: 40.8''

• Weight: 19lb

• Max Lifting Capacity: 4,400 lbs
• Fluid: Hydraulic Mineral Oil
• Fluid Capacity: 0.8quart/800ml

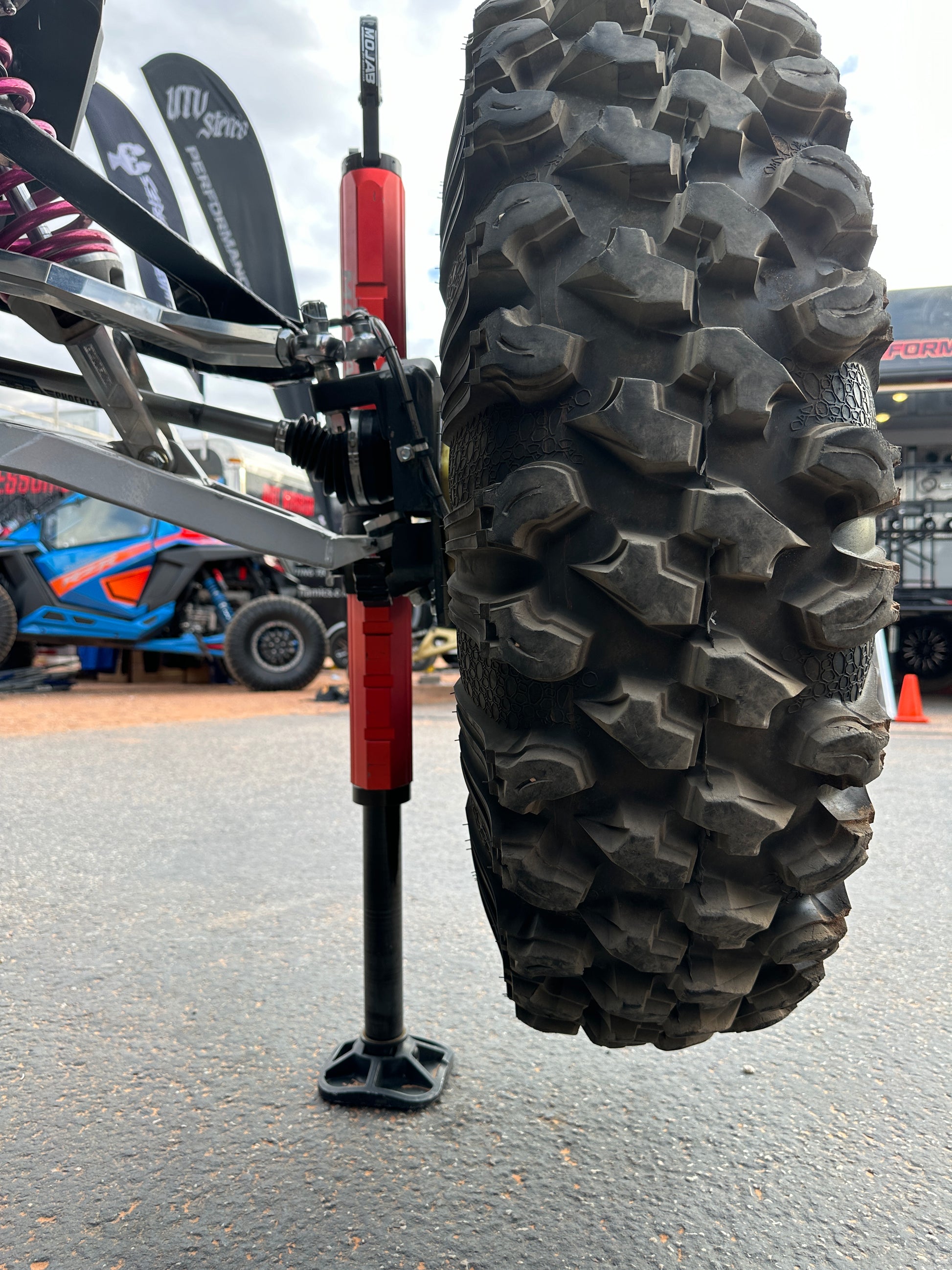

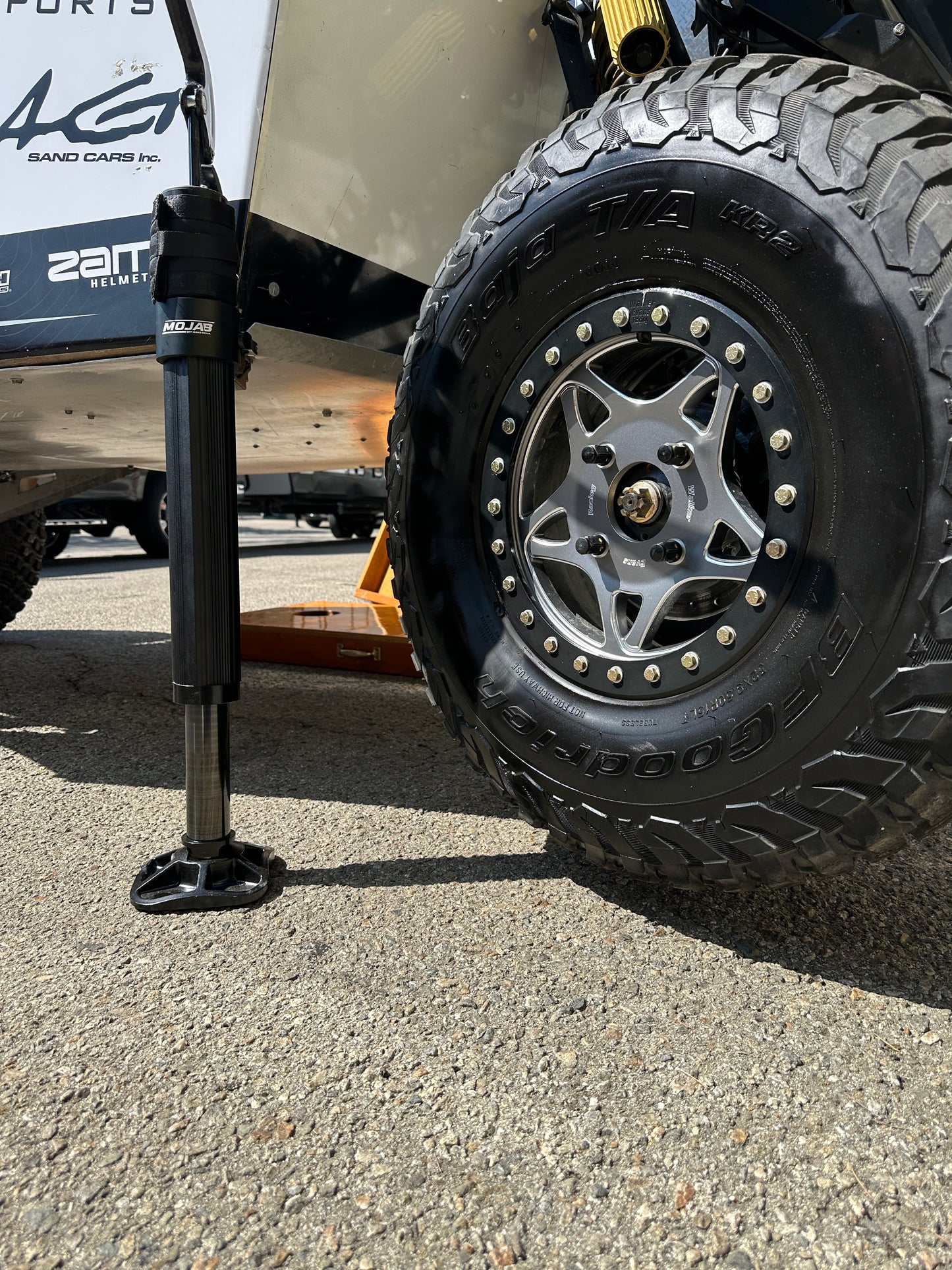

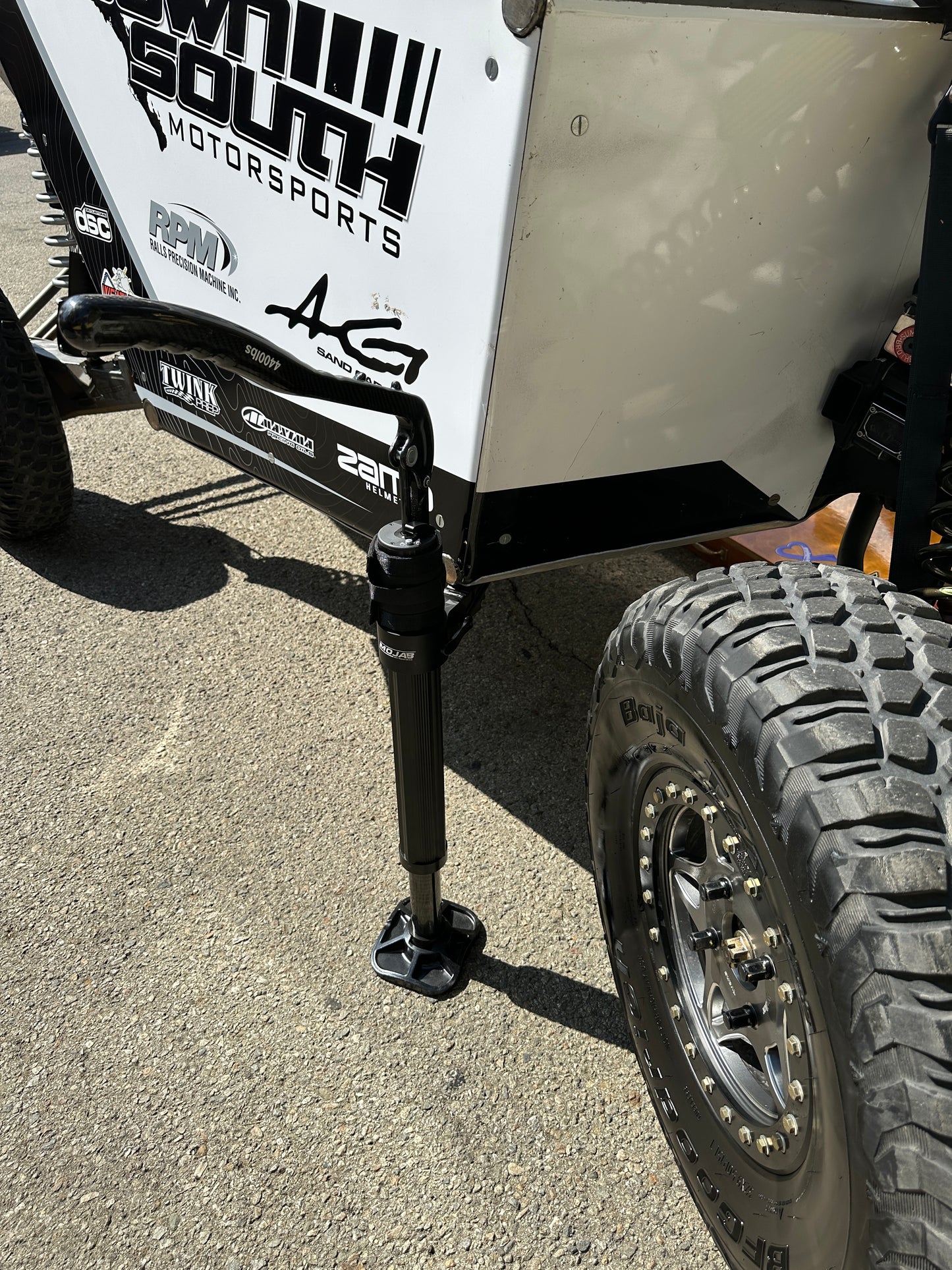

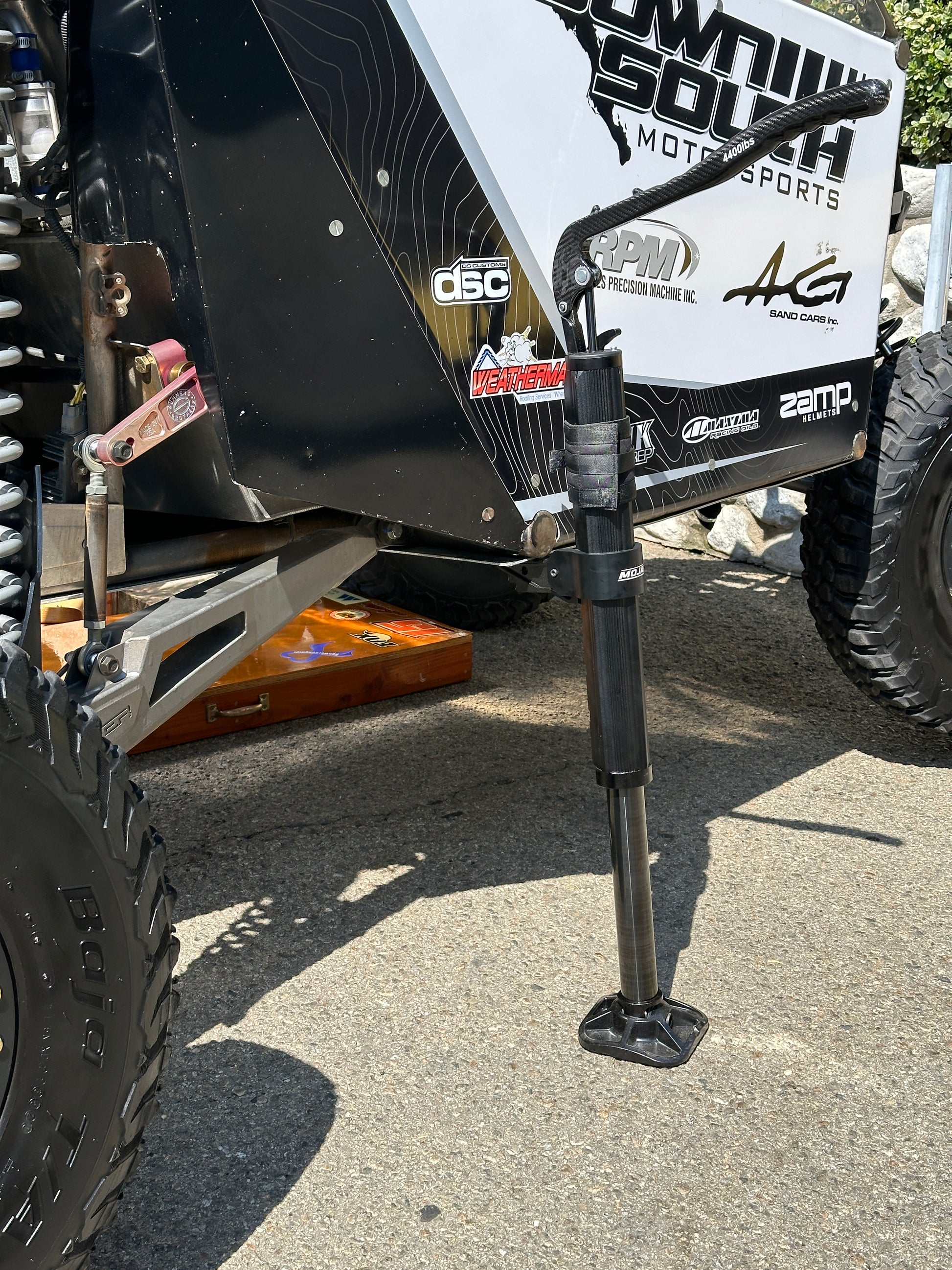

The Carbon Pro SXS jack is designed specifically for needs of side by side and ATV enthusiast. compact yet, powerful, this 8'' shorter version of Original Carbon Pro jack delivers the same unmatched reliability and performance in a size perfectly suited for off-road adventurer.

Experience effortless lifting with the Ultimate Hydraulic Jack. Powered by hydraulic technology, this jack enables smooth and efficient operation with minimal human force required. Say goodbye to strenuous lifting and let the hydraulic system do the work for you. With a simple pump of the handle, you can effortlessly raise heavy loads with ease. The hydraulic mechanism ensures precise control and stability, allowing you to perform the jack with confidence and ease. Whether you're lifting vehicles, machinery, or other heavy objects, the hydraulic power of this jack guarantees a hassle-free lifting experience. Upgrade to the Ultimate Hydraulic Jack and enjoy the convenience and efficiency of hydraulic lifting.

Note: The Carbon Pro SXS Jack features a silver air bleeder valve located just underneath the black lowering lever. This valve has two positions: Lock and Unlock.

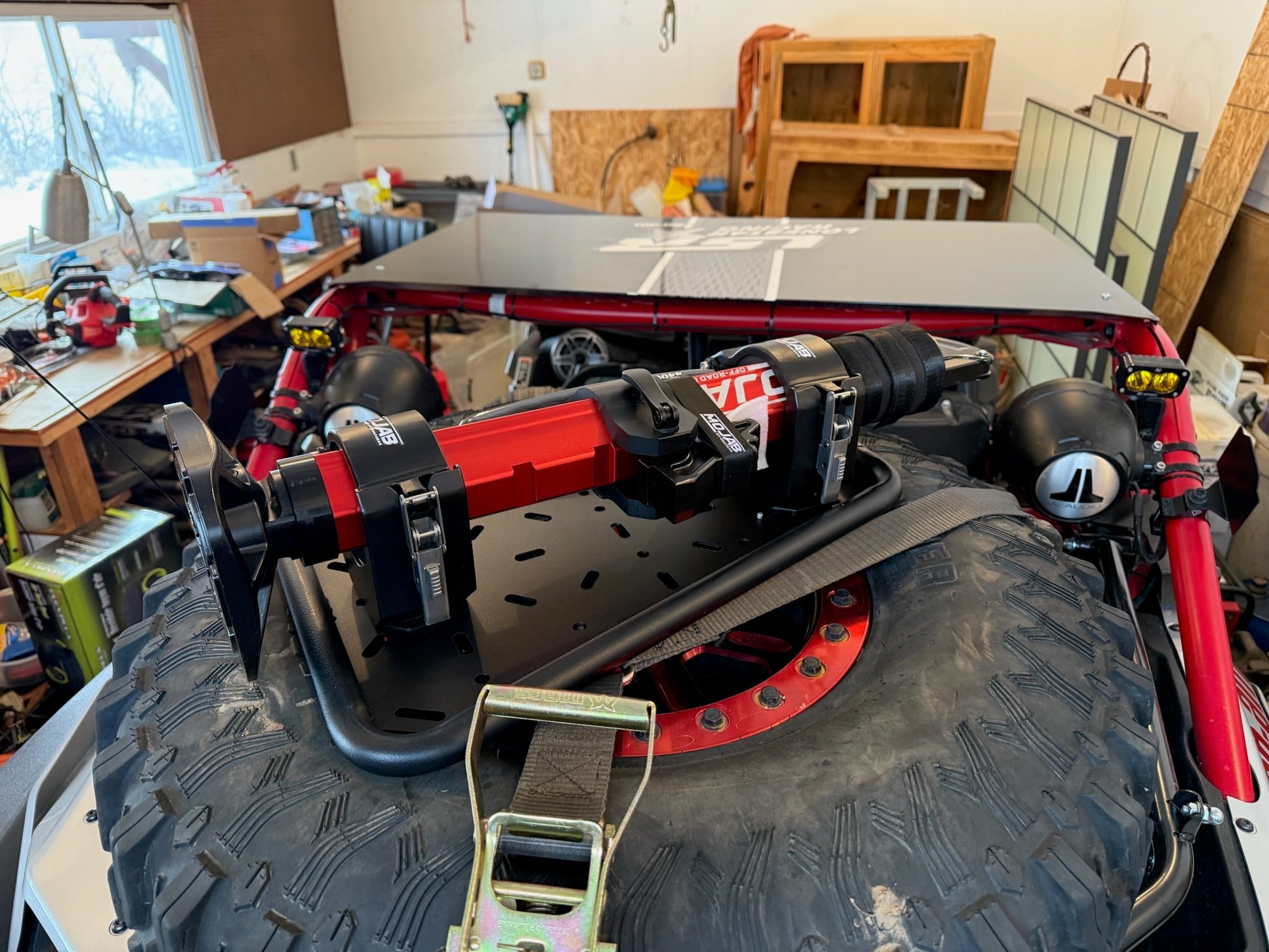

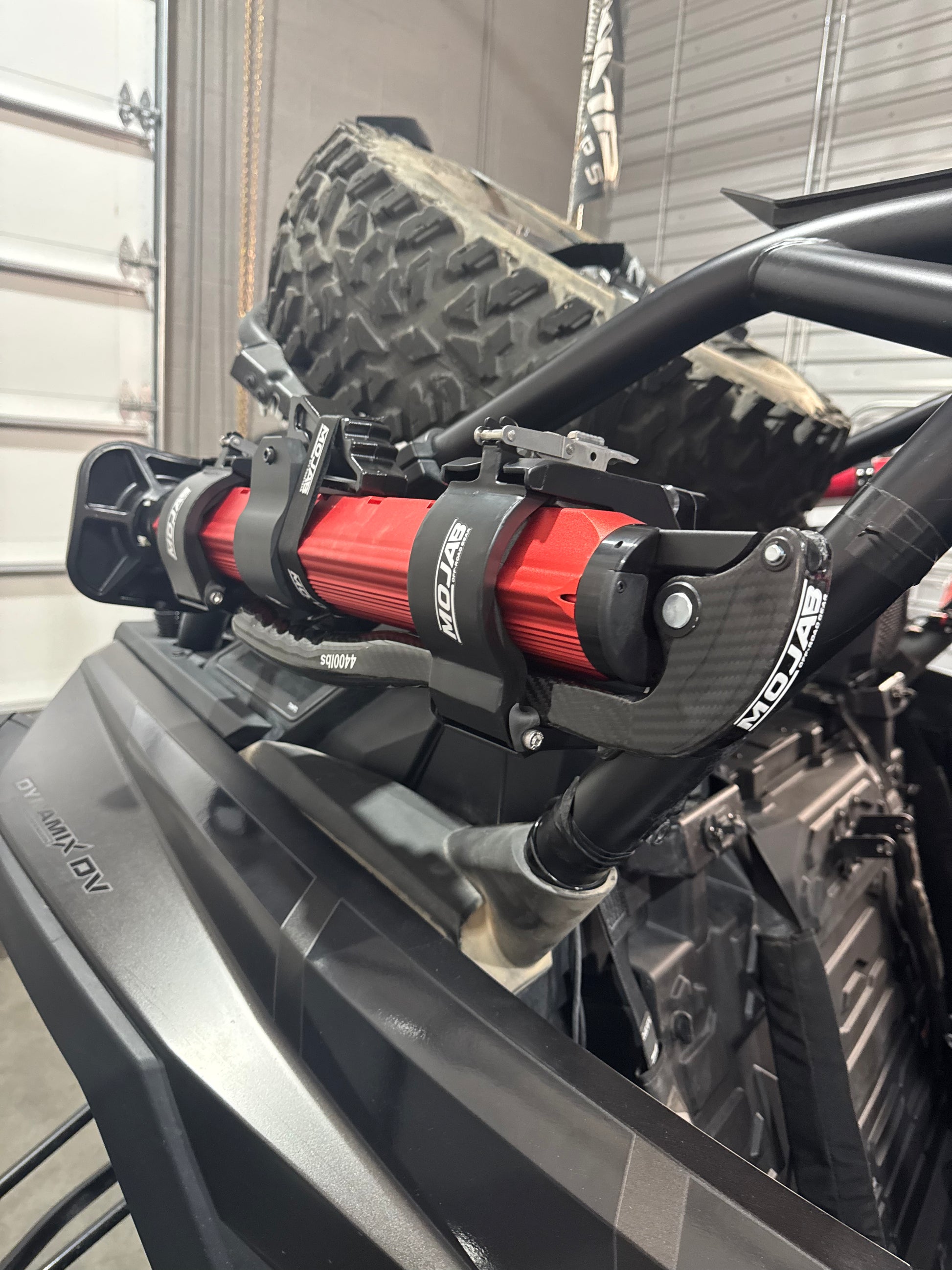

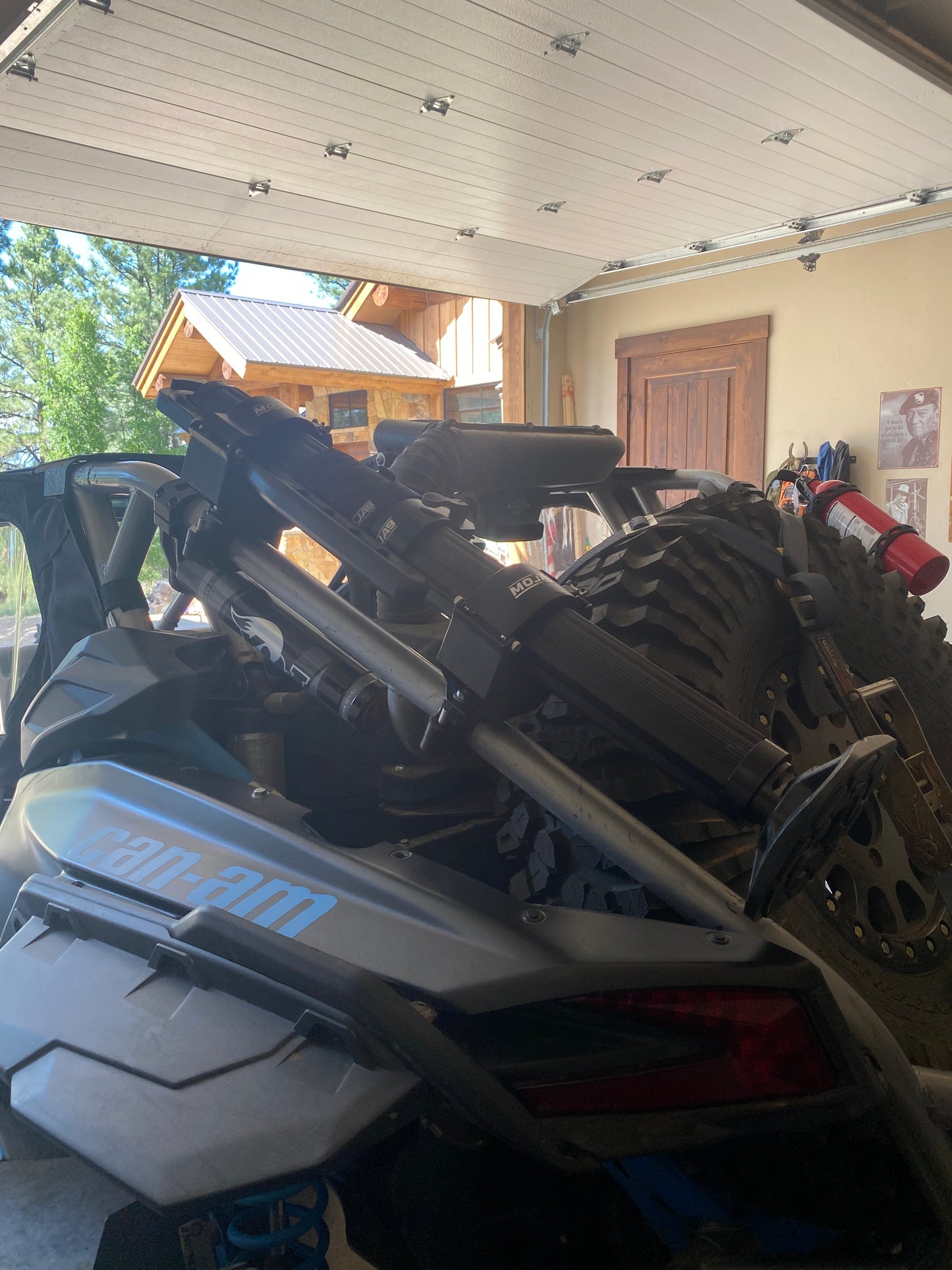

While the jack is mounted and in the stored position: Keep the valve in the Lock position.
When you start using the jack: Turn the valve to the Unlock position.

Air Bleeding Process:
The primary function of this valve is to bleed air from the system. To do this, turn the valve counterclockwise to unlock it, then push the valve down when there is no pressure behind the handle until you hear the air release. It's recommended to bleed the air out of the system every 7 to 8 cranks to allow the jack to equalize properly

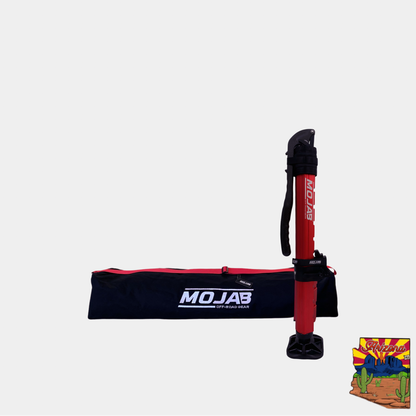

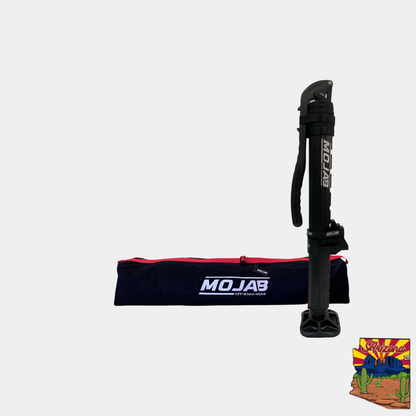

This kit includes the following:

• CarbonPro SXS Hydraulic Jack
• Durable canvas storage bag

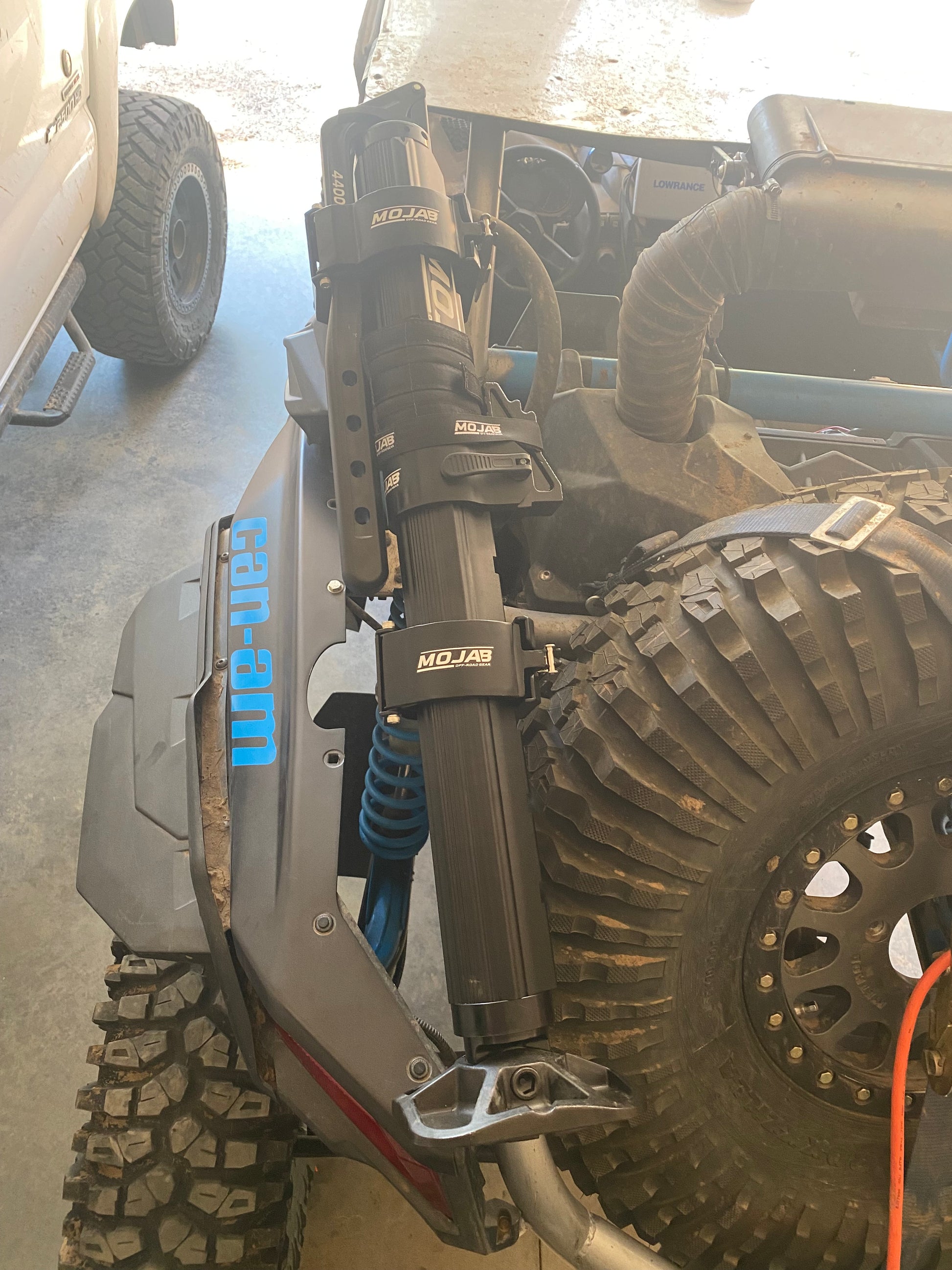

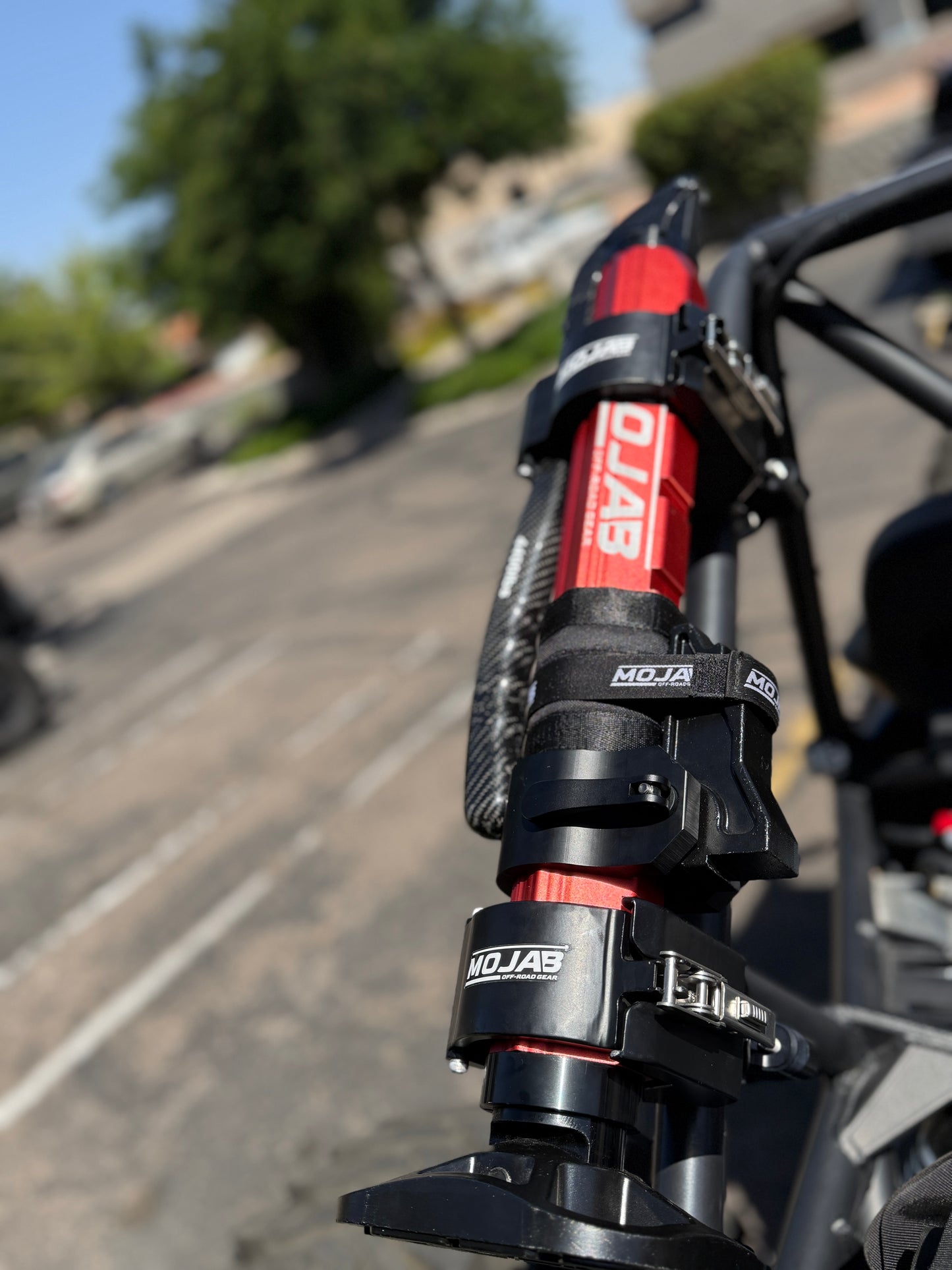

Note: The clamp ADAPTER  and mounting clamps are not included in this kit but can be purchased separate
